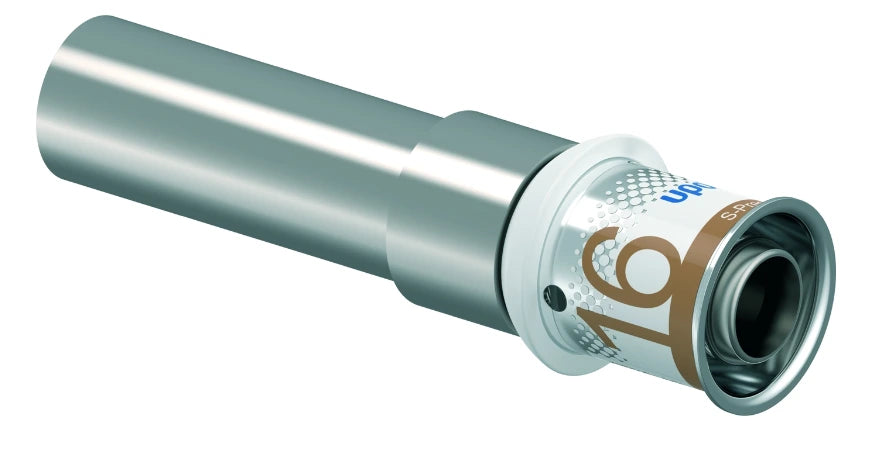

Uponor - S-Press - Plus press - coupling transition

Material connection 1
Brass

Connection quality class 1
Brass dezincification arm

Surface protection connection 1
Tinned

Material connection 2
Brass

Connection quality class 2
Brass dezincification arm

Surface protection connection 2
Tinned

Main colour fitting
Gray

Form
Right

Execution
1 piece

Bend angle
0°

Expiring
Yes

Eccentric
No

System-bound
Yes

Nom. diameter connection 1
DN 12

External pipe diameter connection 1
16mm

Connection 1
Press sleeve

Contour code connection 1
UP

With bumper/rim
Yes

Length
76 mm

Length connection 1
48 mm

Working length connection 1
8mm

Length connection 2
28 mm

Working length connection 2
8mm

Max. medium temperature (continuous)
70°C

Medium temperature (continuous)
0°C

Max. working pressure at 20°C
10 bar

With gaskets
No

Capped
No

Gastec QA
No

With drain plug
No

KIWA-approved
Yes

With air vent
No
